Air Cooling / Water Cooling Flake Ice Maker Machine 1 Ton 2 Ton Ice Machine

Ask Lasest Price
Brand Name :	Icema
Supply Ability :	10 Set/Sets per Month
Price :	$3,500.00/sets 1-1 sets

Add to Cart

Product Details
Company Profile

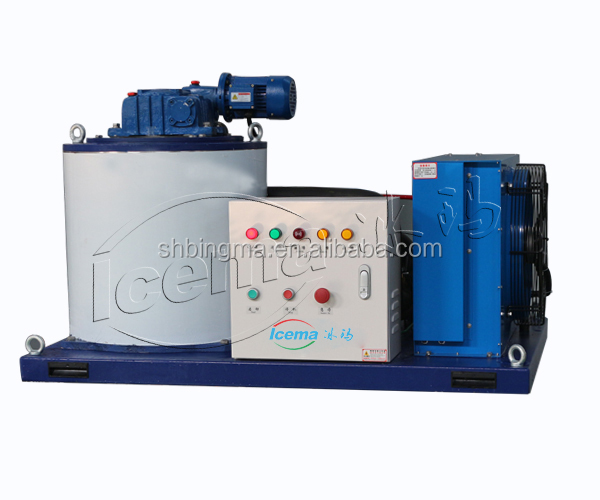

Air Cooling / Water Cooling Flake Ice Maker Machine 1 Ton 2 Ton Ice Machine

Products Description

FLAKE ICE MACHINE DESCRIPTION

Flake ice, it is a kind of irregular flaky ice. Size is different; the biggest flake size is about 30.5mm*30.5 mm, thickness of 1.5 mm - 2.5 mm. Because of its dry, safe to contact by the characteristics of the cooling material ,so it is widely used in hotels, supermarkets, chemical industry, construction and deep-sea fishing, etc.
The freezing principle of flake ice machine is simple, put the city water directly (can also be equipped with water filter) into the cold water tank of assembling unit, When the refrigeration system begins to work, the closed loop heat exchange of refrigerant, outside water flow into the tank, the water is pumped into the water distribution pan by the
circulating pump, driven by the reducer, the water in the pan evenly flows down the inner wall of evaporate, the refrigerant in the refrigeration system evaporates through the loop inside the evaporator and absorbs large amount of heat by exchanging heat with the water on the wall, as a result, the water flow over the surface of inner evaporator wall sharply cools to below the freezing point and freezes into ice instantaneously, Part of the water film attached the bottom of evaporator and then into the water for recycling, when the ice on the inner wall reaches a certain thickness, the spiral ice skates is driven to peel ice from the inner wall, thus ice flakes form, fall into the ice storage bin at the bottom of ice flakes and stored for future cycling.
Generally speaking, the flake ice can fall into the storage in 30 seconds; stop making ice in 2 minutes after machine turned off.

FUTURES AND SUITABLE INDUSTRY

Features：
1. SUS316 stainless steel evaporator;
2. The frame is made of SUS316 stainless steel or hot dip galvanized steel;

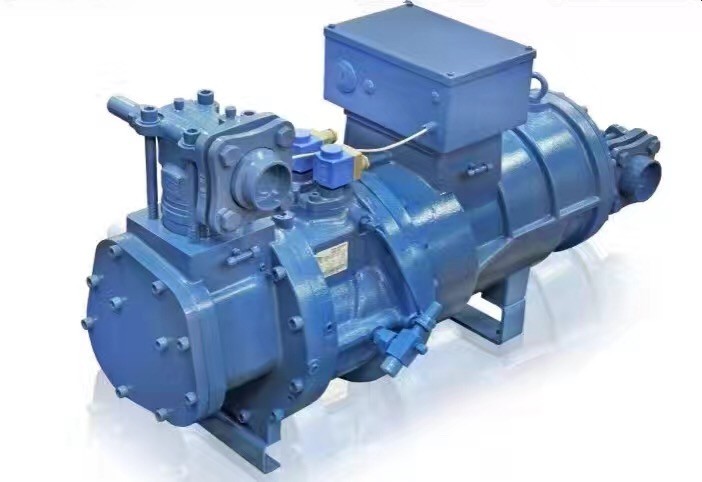

3. Use deep groove piston compressor and special water condenser, longer service life;
4. The water-cooled aircrew need not equipped with cooling tower, can significantly
reducecustomer costs;
5. Can be directly installed on the fishing boat, it is more convenient to use.

Suitable industry：
1. The dock or the place need to use the sea ice;
2. The fishing boats, Making ice is suitable for deep-sea fishing.

Product Paramenters

Model	Output	Refrigerate Capacity	Total Power	Rated Current	Compressor Power	Refrigerant	Cooling Way	Unit Size LWH (mm)
BMSF10	1T	6.5KW	5.9KW	11.8A	4.6KW	R507/R404A	Air/Water	1320970680
BMSF20	2T	12.7KW	11.3KW	22.6A	8.6KW	R507/R404A	Air/ Water	150011001050
BMSF30	3T	18.4KW	15.8KW	31.6A	12.3KW	R507/R404A	Air/Water	174513601250
BMSF50	5T	32.8KW	27.7KW	55.4A	22.7KW	R507/R404A	Air/Water/ Evaporative	220015001600
BMSF80	8T	49KW	41KW	82A	36KW	R507/R404A	Air/ Water/ Evaporative	274019001690
BMSF 100	10T	67.5KW	57.8KW	115A	52.5KW	R507/R404A	Air/ Water/ Evaporative	274019001830
