Industrial Fresh Water Flake Ice Maker Machine 5 Tons Direct Cooling

Ask Lasest Price
Brand Name :	ICEMA
Certification :	CE / ISO
Supply Ability :	100 Unit/Units per Month crushed ice maker machine
Price :	$14,500.00/units 1-1 units
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Model Number :	BMF50

Add to Cart

Product Details
Company Profile

Industrial Fresh Water Flake Ice Maker Machine 5 Tons Direct Cooling

Industrial Fresh water Flake Ice Machine 5Tons Direct Cooling Flake Ice Maker Equipment For Fish Sea Food Factory

Model	output (kg)	Cooling (kw)	input (kw)	Rated current (A)	refrigerant	compressor power(kw)	ice size(MM)	machine size(LWHmm)
BMF03	300kg	2.1	1.9	4.3	R22/R404A	1.5	1.5-2.5mm	950800680
BMF05	500kg	3.5	2.45	5.6	R22/R404A	2.1	1.5-2.5mm	950800810
BMF08	800kg	5	3.5	7	R22/R404A	2.9	1.5-2.5mm	1320970850
BMF10	1T	6.35	4.33	8.66	R22/R404A	3.6	1.5-2.5mm	1320970900
BMF20	2T	12.9	8.66	17.3	R22/R404A	5.88	1.5-2.5mm	150011001050
BMF30	3T	21.5	13	26	R22/R404A	9.7	1.5-2.5mm	174513601250
BMF50	5T	35.0	17.8	35.7	R22/R404A	14.5	1.5-2.5mm	220015001600
BMF80	8T	53.8	29.2	58.5	R22/R404A	24.6	1.5-2.5mm	274019001690
BMF100	10T	65	34.7	69.4	R22/R404A	31	1.5-2.5mm	274019001830
BMF150	15T	95.2	49.6	99.2	R22/R404A	44.8	1.5-2.5mm	274021002320
BMF200	20T	133	64.6	129.3	R22/R404A	57.2	1.5-2.5mm	295021002260
BMF250	25T	165.7	87.7	175.4	R22/R404A	78.5	1.5-2.5mm	295021002450
BMF300	30T	185	93.5	187	R22/R404A	84.3	1.5-2.5mm	430021002520
BMF350	35T	228	124	248	R22/R404A	111.5	1.5-2.5mm	430021002690
BMF400	40T	260	168	336	R22/R404A	156	1.5-2.5mm	430021002890

Industrial Fresh Water Flake Ice Maker Machine 5 Tons Direct Cooling

Products Description

FLAKE ICE MACHINE DESCRIPTION

Flake ice, it is a kind of irregular flaky ice. Size is different; the biggest flake size is about 30.5mm x 30.5 mm, thickness of 1.5 mm - 2.5 mm. Because of its dry, safe to contact by the characteristics of the cooling material ,so it is widely used in hotels, supermarkets, chemical industry, construction and deep-sea fishing, etc.
The freezing principle of flake ice machine is simple, put the city water directly (can also be equipped with water filter) into the cold water tank of

The assembly unit, when the refrigeration system starts to work, the closed -loop heat exchange of the refrigerant, the external water flows into the water tank, and the water is pumped into the water cooker The circulating pump, the water in the pot is uniformly flowing along the inner wall of evaporation. The refrigerant in the refrigerator evaporates through the circuit inside the evaporator and exchanges a lot of calories through the water on the wall. The water on the surface was coolly cooling below the freezing point, and instantly frozen ice into ice. Some water masks were attached to the bottom of the evaporator and then entered the water to recycled. When the ice on the inner wall reached a certain thickness, the spiral skate was driven from the ice cubes from the inner wall, so as Belly slices are formed, the storage refrigerator at the bottom of the boring slices is formed and stored to prepare for future recycling.

FUTURES

1. High efficiency of ice making;
2. Power is relatively large, need to determine the power capacity;
3. Color man-machine interface, the unit running status be clear at a glance, simple operation,
4. Optional piston or screw compressor unit;
5. There is no standard ice storage, non-standard order is allowed.

SUITABLE INDUSTRY

1. The raw materials storing and precooling of the food processing plant;
2. The lives stock precooling, fresh keeping, freezing and transporting after killing in the meat processing plant;
3. The reaction kettle of chemical plant, raw material cooling and the box-type and environment cooling;
4. Concrete cooling during mixing, concrete adding in the construction industry;
5. Ice factory;
6. The deep-sea fishing and seafood fresh keeping;
7. The mine cooling.

Product Paramenters

Model	Output	Refrigerate Capacity	Total Power	Rated Current	Compressor Power	Refrigerant	Cooling Way	Unit Size LWH (mm)
BMF50	5T	35KW	17.8KW	35.7A	14.5KW	R22/R404A	Air/ Water	220015001600
BMF80	8T	53.8KW	29.2KW	58.5A	24.6KW	R22/R404A	Air/ Water	274019001690
BMF100	10T	65KW	34.7KW	69.4A	31KW	R22/R404A	Air/ Water	274019001830
BMF150	15T	95.2KW	49.6KW	99.2A	44.8KW	R22/R404A	Air/ Water	274021002320
BMF200	20T	133KW	64.6KW	129.3A	57.2KW	R22/R404A	Air/ Water	295021002260
BMF250	25T	165.7KW	87.7KW	175.4A	78.5KW	R22/R404A	Water/ Evaporation	295021002450
BMF300	30T	185KW	93.5KW	187A	84.3KW	R22/R404A	Water/ Evaporation	430021002520
BMF350	35T	228KW	124KW	284A	111.5KW	R22/R404A	Water/ Evaporation	430021002690
BMF400	40T	260KW	168KW	336A	156KW	R22/R404A	Water/ Evaporation	430021002890

Company Profile

Shanghai ICEMA refrigeration technology co.,LTD is a technology-based enterprise that pay attention to user experience.According to customer requirements,Company can produce intermediate,low and ultra low temperature refrigeration system,covering cooling, keeping fresh,cold storing,freezing,quick freezing and other fields,our machines not only have a large market share in china,and also be exported to Southeast Asia, Africa, Middle East,South America,Europe and other countries.According to the developing requirement of the market,SHANGHAI ICEMA refrigeration technology co., LTD has developed a group of standard machines for customers in all industries, including brine refrigeration block ice machine, direct refrigeration block ice machine (high quality aluminum plate), tube ice machine, seawater type flake ice machine, freshwater type flake ice machine, plate ice machine, slurry ice machine, cube ice machine, water chiller, rake ice storage, spiral ice storage, fruits,vegetables and meat cold storage, spiral ice feed system, etc. In Suzhou we have our OEM factory that is specialized to provide all kinds of air condenser and terminal devices of air condition.

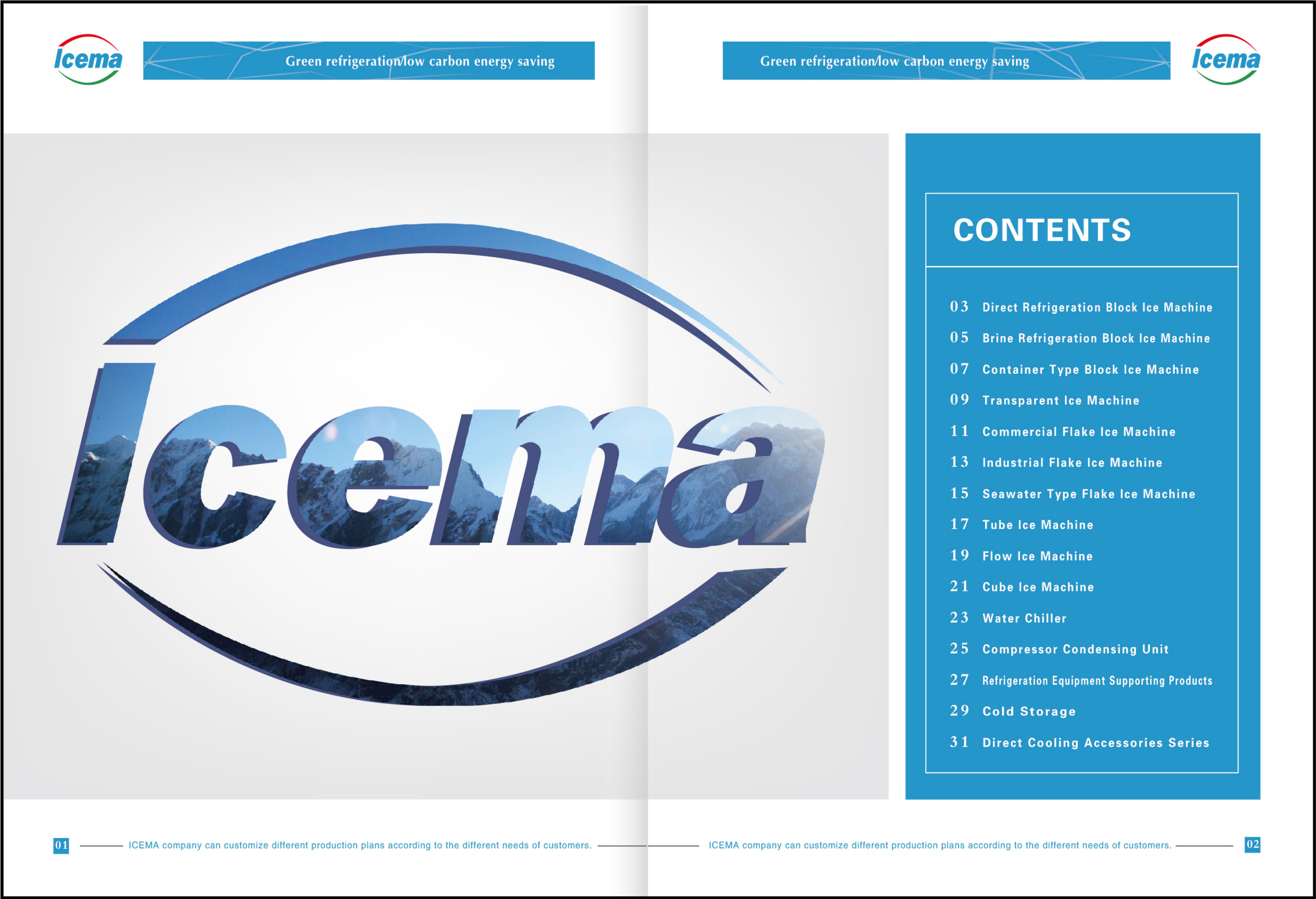

Products catalogues

FAQ

1. Can I customize the machine?
Yes. You can choose output, material, accessories brand, etc.

2. Are the prices on the website accurate?
No. Because the price of the machine is affected by many factors, the price of the website is not very accurate.

3. How do I get a more accurate price?
Tell the salesman your requirements and they will give you a more accurate price.

4. How long will it take to make the machines?
The production time required for machines of different output is different. Peak season requires longer production time.

5. Is there any guarantee for my payment?
In Alibaba, we paid the margin. This is to protect your rights. In addition, After you receive the goods, Alibaba will release your payment to us.

6. How do I receive the goods?
After we reach an agreement, I will entrust a freight forwarder to deliver the goods to your designated port. When the goods arrive at the port, you can go to the port to pick them up with the bill of lading.
